Super heavy duty roller conveyors and hydraulic cross transfers — in stock and ready to ship.
AMTEK heavy duty material handling is built for structural steel: super heavy duty roller conveyors rated at 1000 lbs per roller — 1000 lbs/ft — with 3.5-inch (90mm) rollers on ANSI 60 chain drive, plus hydraulic cross transfers that lift, carry, and push up to 8000 lbs each across 15 to 20 feet.
Conveyors are available in 2, 4, and 6 roller configurations with heights specified by the customer, and units are in stock now — F.O.B. Riverside, CA — backed by a 2-year limited warranty.
AMTEK publishes straight pricing on heavy duty material handling. Here is what the investment looks like against rated capacity — all figures from published specifications:
| Model | Price (USD) | Rated capacity | Cost per lb of capacity |
|---|---|---|---|
| Single-roller drill line conveyor | $775 | 1,000 lbs | $0.78 |
| 24" conveyor — 2 rollers | $1,200 | 2,000 lbs | $0.60 |
| 100" conveyor — 6 rollers | $2,500 | 6,000 lbs | $0.42 |
| Hydraulic cross transfer | $6,000 | 8,000 lbs lift | $0.75 |
Where the payback comes from:
To discuss your layout, contact +001-714-366-9957 — heights are specified by the customer for every conveyor.
Factory specifications for every variant of the AMTEK-HMH.
| Variant reference | AMTEK-HMH-RC100 | AMTEK-HMH-RC24 | AMTEK-HMH-RC1 | AMTEK-HMH-CT8000 |
|---|---|---|---|---|
| Description | Super heavy duty roller conveyor | Super heavy duty roller conveyor | Super heavy duty roller conveyor for single spindle drill line | Super heavy duty cross transfer |
| Length / transfer | 100 inches (2540mm) | 24 inches (610mm) | — | 15'–20' transfer length |
| Capacity | 1000 lbs per roller × 6 rollers | 1000 lbs per roller × 2 rollers | 1000 lbs per roller × 1 roller | 8000 lbs lift capacity each |
| Roller diameter | 3.5 inches (90mm) | 3.5 inches (90mm) | 3.5 inches (90mm) | — |
| Chain size | ANSI 60 | ANSI 60 | ANSI 60 | — |
| Roller centers | 18.75 inches (500mm) | 18.75 inches (500mm) | 18.75 inches (500mm) | — |
| Power / capabilities | — | — | — | Hydraulic — lift, carry and push |
| Height | Specified by customer | Specified by customer | Specified by customer | — |
| Warranty | 2 years limited | 2 years limited | 2 years limited | 2 years limited |
| Price (USD) | $2,500 | $1,200 | $775 | $6,000 |
| Availability | In stock | In stock | In stock | Contact AMTEK |
| F.O.B. | Riverside, CA | Riverside, CA | Riverside, CA | Riverside, CA |

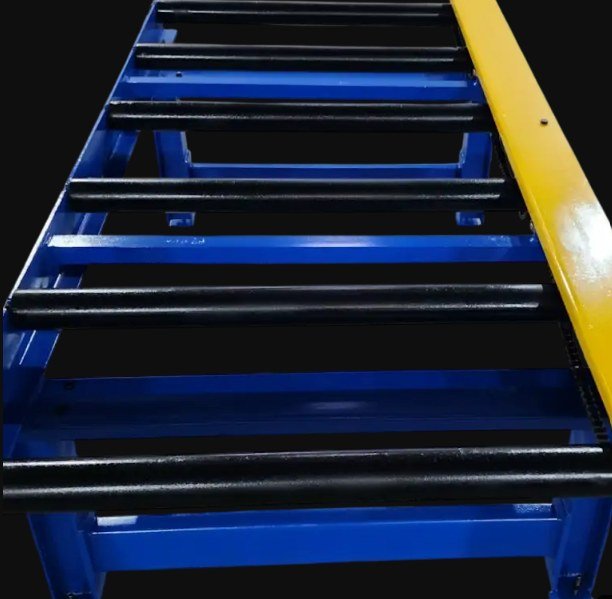

3.5-inch (90mm) rollers rated 1000 lbs per roller — 1000 lbs/ft capacity, available in 2, 4, and 6 roller configurations.

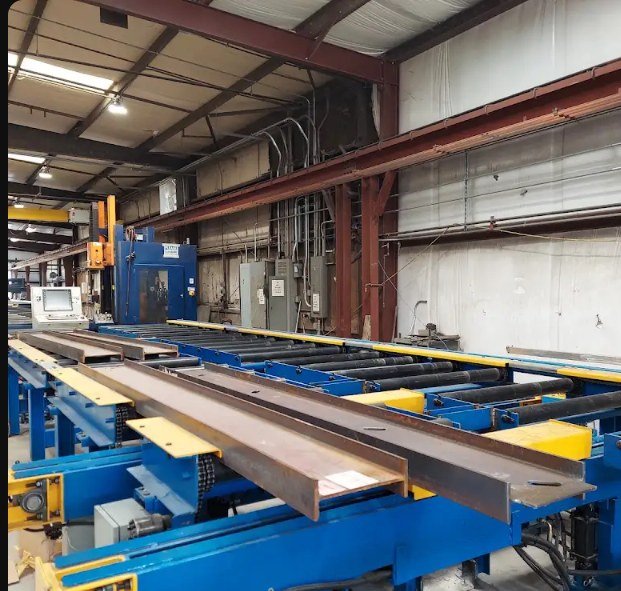

8000 lbs lift capacity each with 15–20 ft transfer length — lift, carry, and push heavy members across your line.

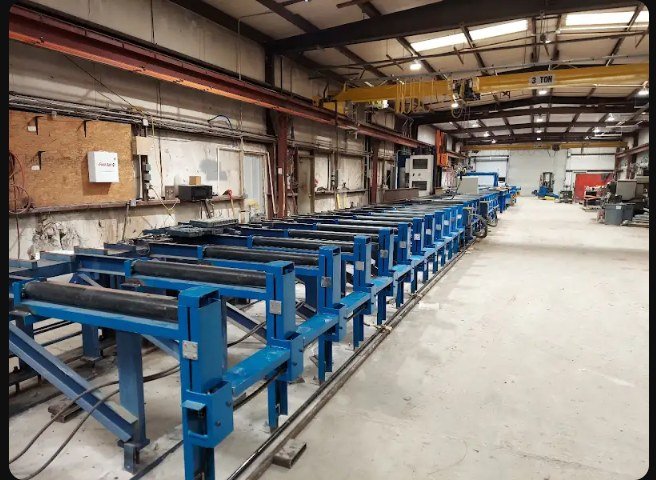

Single-roller conveyor sections purpose-built for single spindle drill lines — $775, in stock.

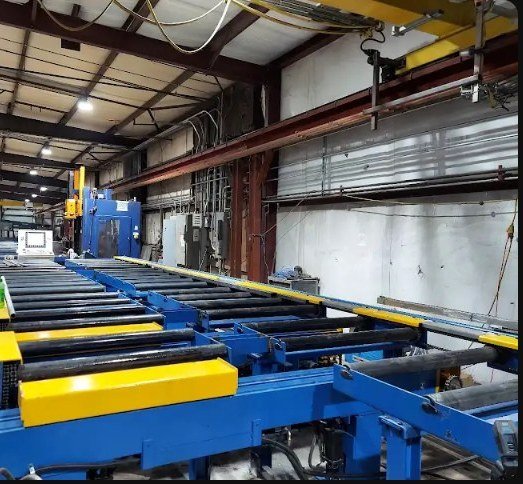

24-inch conveyor sections for tight layouts and line extensions — $1,200, in stock.
AMTEK super heavy duty roller conveyors are rated at 1000 lbs per roller — 1000 lbs/ft — with 3.5-inch (90mm) rollers on ANSI 60 chain drive, available in 2, 4, and 6 roller configurations.
Yes. Roller conveyor sections are in stock now, F.O.B. Riverside, CA, and every unit carries a 2-year limited warranty.
AMTEK super heavy duty cross transfers use hydraulic power to lift, carry, and push heavy steel members across the line — 8000 lbs lift capacity each over a 15 to 20 foot transfer length.
