SINGLE ROLLERS DESIGNED ESPECIALLY FOR

SINGLE SPINDLE DRILLING MACHINES

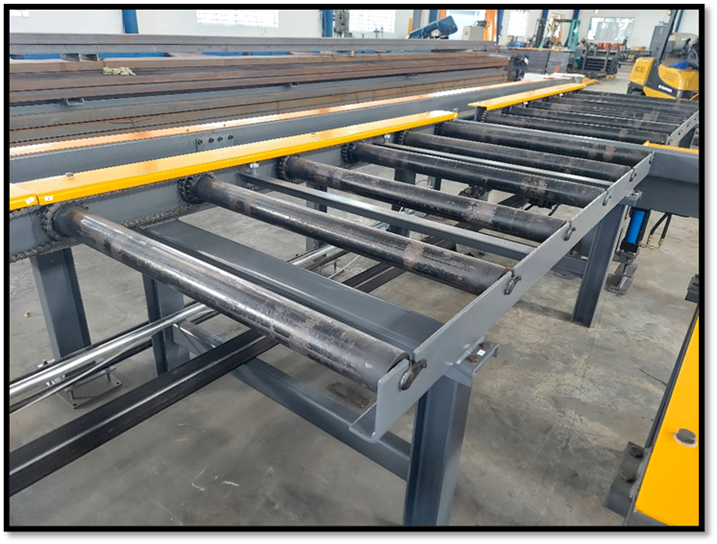

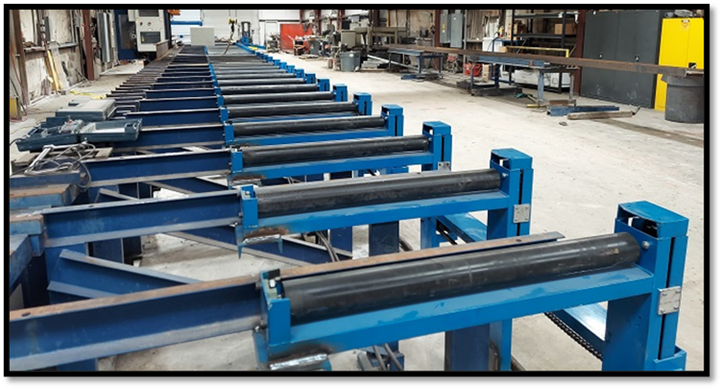

2 ROLLERS CONVEYORS

POWERED & IDLER

LEGS ADJUSTABLE UP TO 4” (100mm)

CENTER-TO-CENTER IS CUSTOMIZABLE

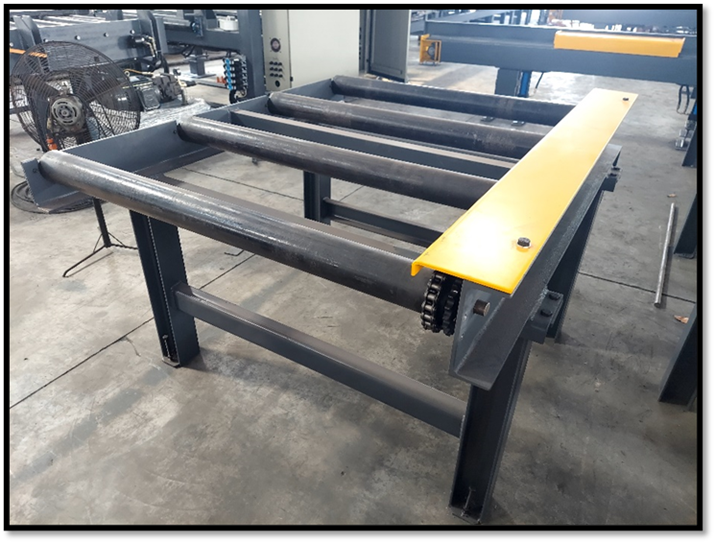

4 ROLLERS CONVEYORS

POWERED & IDLER

LEGS ADJUSTABLE UP TO 4” (100mm)

CENTER-TO-CENTER IS CUSTOMIZABLE

4 ROLLERS CONVEYORS

POWERED & IDLER

LEGS ADJUSTABLE UP TO 4” (100mm)

CENTER-TO-CENTER IS CUSTOMIZABLE

DESCRIPTIONS
Roller Diameter	3.5” OD (90mm OD)
Roller Thickness	0.23” (6mm)
Shaft size	1” (25mm)
Bearings	Ball bearings with capacity of 2500 lbs. radial load
Usable width	46” (1170mm)
Chain size	ANSI #60
Sprockets location	Welded onto pipes (ZERO maintenance)
Weight capacity	1000 lbs. per foot (1.3 tons per meter)
Power Requirements	Hydraulic powered
Controls	Wired / Wireless / Fully automatic
Manufactured	Riverside, California USA

OVER 500 SYSTEMS SETUP WORLWIDE

AND

2 YEARS WARRANTY ON ALL OF OUR PRODUCTS

OUR EQUIPMENT WILL PAY FOR ITSELF BEFORE THE WARRANTY PERIOD IS OVER

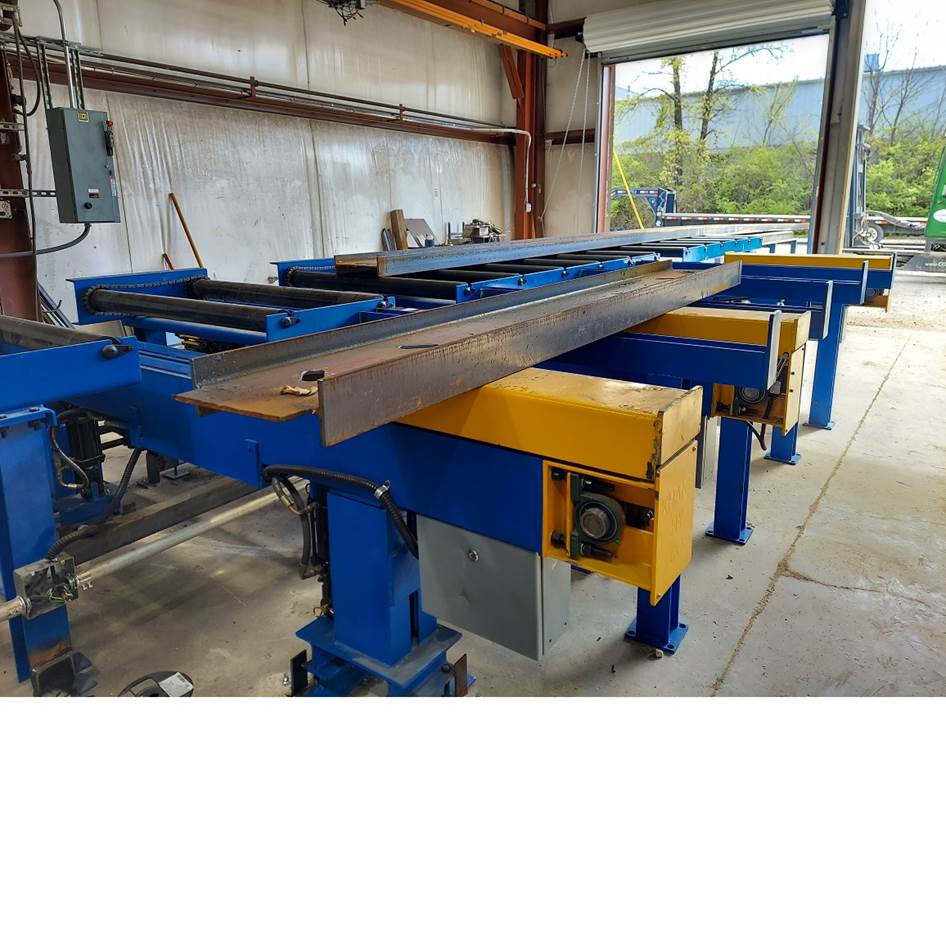

WE PROVIDE A FULL LINE OF ROLLER CONVEYORS AND CROSS TRANSFERS FOR ANY BANDSAW IN THE WORLD.

COMPLETE MATERIAL HANDLING FOR COPING MACHINES OF ANY MANUFACTURERS

COMPLETE FULLY AUTOMATIC MATERIAL HANDLING FOR ANY ROBOTS

FULLY AUTOMATED MATERIAL HANDLING FOR LOAD AND UNLOAD WITHOUT THE OPERATORS

THE MOST AFFORDABLE MATERIAL HANDLING IN THE MARKET

20 YEARS, NO PROBLEM

17 YEARS RUNNING WITH MINIMAL MAINTENANCE

95% FULLY AUTOMATED, 300’ LONG WITHOUT OPERATORS
