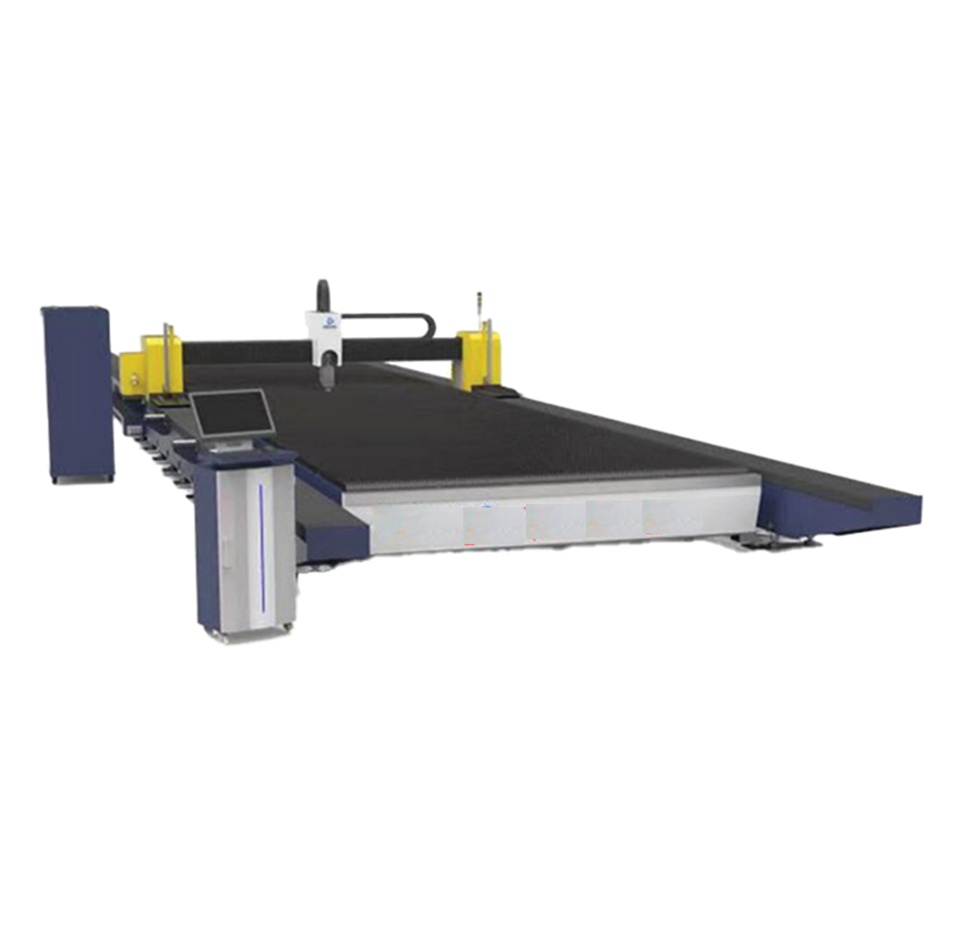

GANTRY
FIBER LASER CUTTING MACHINE
FEATURES
• Works
with large patterns.
• Well-known
FIBER LASER source including Trumpf, IPG, Raycus, Maxphotonics.
• Raytools/Precitec Laser Cutting Head
with auto sensor function is suitable for different focal lengths and controlled
by the system.
• Japanese
Yaskawa AC servo motor and drive, which is a high accuracy as stable, reliable,
good dynamic performance and strong load capacity.
• Auto
Oxygen Pressure Regulator helps to control the flow and ensure the quality
of cutting.
• Valves
are designed to alert the pressure and airflow, detect failures of oxygen
and nitrogen gas pressure.
• The
machine is assembled from linking modules for convenient transportation.
• Smart
controller is specially designed for fiber laser cutting machine and especially,
it's user-friendly.
• Cutting
parameters are stored depending on the material thickness. Selecting the available
parameters in the library for using.
• The
remote pendant is one of the many clever elements that make it easier to
control the laser cutting machine.
• Auto
lubrication system ensures the durability and it results in extended equipment life.
Selecting the appropriate lubrication solution can help reduce premature bearing
failures and increase machine uptime, productivity and energy efficiency.
• Low operational costs.
Specifications
|
Product
Model |
12020G |
12025G |
13030G |
24030G |
24050G |
|
Max
cutting size (mm) |
12000x2000 |
12000x2500 |
13000x3000 |
12000x3000 |
12000x5000 |
|
Effective travel |
|||||
|
X |
2050 |
2550 |
3050 |
3050 24050 100 |
5050 |
|
Axis
X (mm) |
|||||
|
Y |
12050 |
12050 |
13050 |
24050 |
|
|
Axis
Y (mm) |
|||||
|
Z |
100 |
100 |
100 |
100 |
|
|
Axis
Z (mm) |
|||||
|
Positioning Accuracies |
|||||
|
X |
±0.03 |
±0.03 |
±0.03 |
±0.03 ±0.03 ±0.01 |
±0.03 |
|
Axis
X (mm) |
|||||
|
Y |
±0.03 |
±0.03 |
±0.03 |
±0.03 |
|
|
Axis
Y (mm) |
|||||
|
Z |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
|
|
Axis
Z (mm) |
|||||
|
Repeatabilities |
|||||
|
X |
±0.02 |
±0.02 ±0.02 ±0.005 |
±0.02 |
±0.02 ±0.02 ±0.005 |
±0.02 |
|
Axis
X (mm) |
|||||
|
Y |
±0.02 |
±0.02 |
±0.02 |
||
|
Axis
Y (mm) |
|||||
|
Z |
±0.005 |
±0.005 |
±0.005 |
||
|
Axis
Z (mm) |
|||||
|
Rapid Positioning Speed |
|||||
|
X |
90 |
90 90 48 |
90 |
90 90 48 |
90 |
|
Axis
X (mm) |
|||||
|
Y |
90 |
90 |
90 |
||
|
Axis
Y (mm) |
|||||
|
Z |
48 |
48 |
48 |
||
|
Axis
Z (mm) |
|||||
|
Fiber
Laser Source |
6000/8000/10000/12000/15000/20000/30000/40000 380V/50Hz and 480/60Hz 3 phase 4.6~90 |
||||
|
Fiber
Laser Power (W) |
|||||
|
Power
Requirements |
|||||
|
Power
Supply (V) |
|||||
|
Power
consumption |
|||||
|
Power
Consumption (kWh) |
|||||
|
Machine
Dimensions DxRxC Dimension (mm) |
15000x3200
x2100 |
15000x3700 x2100 |
15000x4200
x2100 |
27000x4200 x2100 |
27000x6200
x2100 |
